Professional RF4-CX71R Trinocular Microscope for Smartphone Motherboard & PCB Repair (HD Clarity)

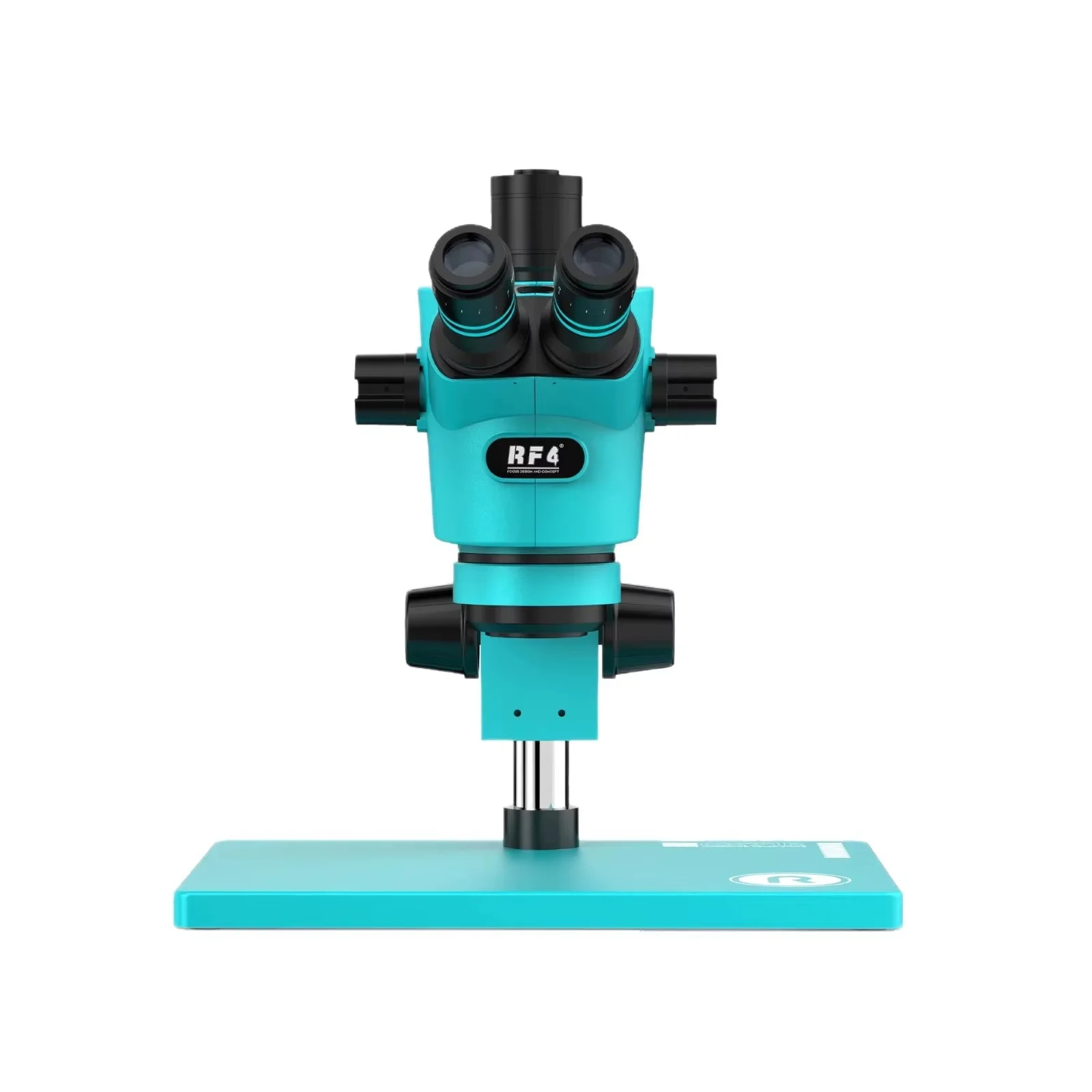

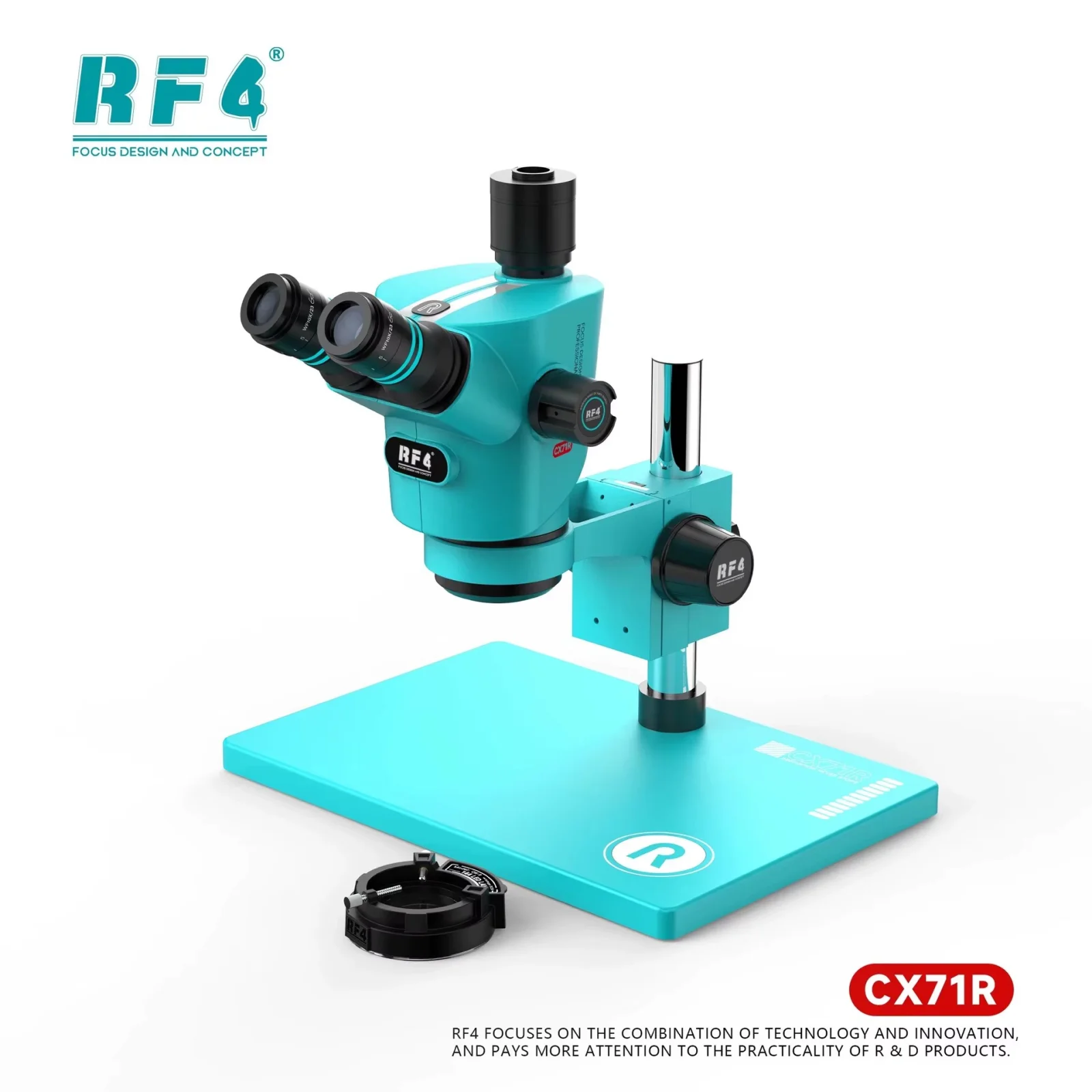

RF4-CX71R Trinocular Stereo Microscope for Smartphone Motherboard Repair

Product Overview

The RF4-CX71R is a high-definition trinocular stereo microscope designed specifically for precision electronics work, including smartphone motherboard repair and circuit board inspection. Built with professional-grade optics and a durable structure, this microscope delivers clear, stable imaging for technicians who require accuracy and reliability.

With a wide magnification range and ergonomic design, the CX71R is ideal for repair shops, laboratories, and electronics professionals working on detailed components.

Key Specifications

• Eyepiece: PL10X / 23mm wide-field eyepiece
• Zoom Ratio: 1:10 continuous zoom
• Magnification Range: 6.5X – 65X
• Working Distance: 105mm
• Field of View: 4mm – 34mm
• Objective Lens: 0.65X – 6.5X zoom objective
• Head Tilt: 30° ergonomic viewing angle
• Interpupillary Distance: 54–76mm adjustable
• Diopter Adjustment: ±5D on both eyepieces
• Stand Size: 380mm × 260mm base
• Mounting Size: 76mm inner diameter, 32mm column
• Lighting: OK-9 144-LED illumination system

Key Features

High-Definition Optical Clarity
The RF4-CX71R delivers sharp, distortion-free images, making it easy to inspect micro-components, solder joints, and PCB traces with confidence.

Wide Magnification Range (6.5X–65X)
From general inspection to fine-detail work, the flexible zoom system allows you to adjust magnification smoothly without losing focus.

Trinocular Design for Camera Integration
The trinocular head supports camera attachment, making it ideal for documentation, live display, or training purposes.

Ergonomic and Adjustable Viewing
With a 30° inclined head, adjustable interpupillary distance, and diopter correction, this microscope is built for long working sessions without fatigue.

Stable and Durable Construction
The solid base and precision stand ensure stability during delicate repair tasks, reducing vibration and improving accuracy.

Professional LED Lighting System
Equipped with a 144-LED light source, it provides bright, even illumination across the workspace, enhancing visibility of fine details.

Why the RF4-CX71R Is Ideal for Smartphone and PCB Repair

Modern electronics repair requires precision at a microscopic level. As smartphone motherboards and circuit boards become more compact and complex, technicians need tools that can keep up with the demand for accuracy. The RF4-CX71R trinocular stereo microscope is designed to meet those needs.

One of the most important factors in electronics repair is image clarity. Poor visibility can lead to mistakes, especially when working with tiny components like IC chips or micro solder joints. The RF4-CX71R provides high-definition optical performance, allowing technicians to clearly see every detail without distortion.

The wide magnification range of 6.5X to 65X makes this microscope extremely versatile. Whether you're doing a quick inspection or performing intricate repairs, you can easily adjust the zoom to match your task. The smooth zoom ratio ensures seamless transitions without interrupting your workflow.

Another major advantage is the trinocular design. Unlike standard binocular microscopes, the CX71R allows you to attach a camera for recording or live viewing. This is especially useful for repair training, quality control, or sharing diagnostics with clients.

Comfort is also a key consideration. Long repair sessions can cause strain, but the ergonomic 30-degree viewing angle and adjustable settings help reduce fatigue. This makes the microscope suitable for professionals who spend hours at the workbench.

Durability and stability are equally important. The sturdy base and precision stand minimize vibrations, ensuring steady observation even during delicate operations. Combined with the powerful LED lighting system, the CX71R creates a well-lit, stable working environment.

In today’s fast-paced repair industry, efficiency and accuracy are everything. The RF4-CX71R offers a reliable solution for technicians who need professional-grade performance without compromise.
